Mustang Transmission Rebuild Cost: What You'll Really Pay in Los Angeles (2025)

Understanding Mustang Transmission Options (And What Fails)

Classic Mustangs came with five main transmissions:

Manual Transmissions:

• 3-Speed Ford Manual (1964½–'66) - The base transmission. Non-synchronized in 1st/2nd on many units. Rare today, mostly kept for originality.
• 4-Speed Toploader (1965–'73) - The "rock crusher." Strong, rebuildable, expensive to restore. The transmission everyone wishes they had.

Automatic Transmissions:

• C4 Automatic (1964–'71) - The standard 3-speed auto. Simple, durable for stock engines, but slips when worn.
• FMX (1968–'71) - Heavier-duty 3-speed auto, used behind 351s. Tougher than C4, rarer parts.
• C6 (select big-block cars) - The indestructible 3-speed. Heavy, no overdrive, saved for 428s and nostalgia builds.

Modern Swaps owners actually do:

• Tremec T5 (5-speed manual) - The go-to overdrive manual swap
• AOD (4-speed automatic) - Ford's first overdrive auto, popular '80s–'90s swap
• Tremec TKX/TKO (5-speed manual) - Modern, strong, expensive
• 4R70W (4-speed electronic auto) - Late-model Ford overdrive auto for high-power builds

Each has its own rebuild complexity, parts availability, and "while we're in there" moments.

What Actually Fails (And Why It Costs What It Does)

Common Manual Transmission Failures

Toploader 4-Speed:

• Worn 2nd gear synchro ring (the classic failure - causes grinding)
• Worn cluster gear teeth from missed shifts
• Hardened main shaft bearings
• Cracked tailhousing from previous owner adventures
• Fork and rail damage from heavy clutch use

The Toploader is mechanically simple but requires specialized Ford tools and knowledge. A shop that's never rebuilt one will learn on your dime.

3-Speed Manual:

• Same synchro and bearing issues as Toploader
• Thin countershaft prone to leaking
• Parts scarcity drives up rebuild costs
• Most shops won't touch them (they send it out, adding markup)

Common Automatic Transmission Failures

C4 Automatic:

• Slipping 2–3 shift (worn bands and clutches)
• Front pump seal leaks
• Rear output seal leaks
• Dirty valve body causing shift flares
• Worn torque converter (should always be rebuilt with the trans)

The C4 is the most common classic Mustang automatic. Parts are available, but labor is labor.

FMX Automatic:

• Similar band and clutch wear
• Heavier design means fewer failures but harder to rebuild
• Parts cost more than C4
• Fewer shops specialize in them

C6 Automatic:

• Nearly indestructible when built right
• When it fails, it's usually converter or pump
• Rebuild costs rival the C4 but parts are heavier

I've been that guy—the one who kept adding fluid every few weeks thinking "it's probably just a pan gasket." It wasn't. It was a front seal, rear seal, and clutch pack doing its best impression of confetti. The mechanic who finally diagnosed it said, "This has been failing for a year." He was right. Ask me how I know.

LA Shop Labor Rates & Realistic Timelines

Los Angeles transmission shops range from $110/hour (independent shops in the Valley) to $165/hour (specialists in Santa Monica or Pasadena who know classic Fords).

Typical Labor Hours by Transmission Type:

At $125/hour (LA mid-range), a Toploader rebuild is $1,125–$1,625 in labor alone before you've bought a single bearing.

Timeline Reality Check:

Most shops quote 1–2 weeks for a standard rebuild if they do it in-house. If they send it out to a transmission specialist (common for Toploaders), add 2–3 weeks for turnaround plus shipping time.

I waited three weeks for my C4 rebuild. The shop said "two weeks max." This is restoration law: whatever they quote, add 50%.

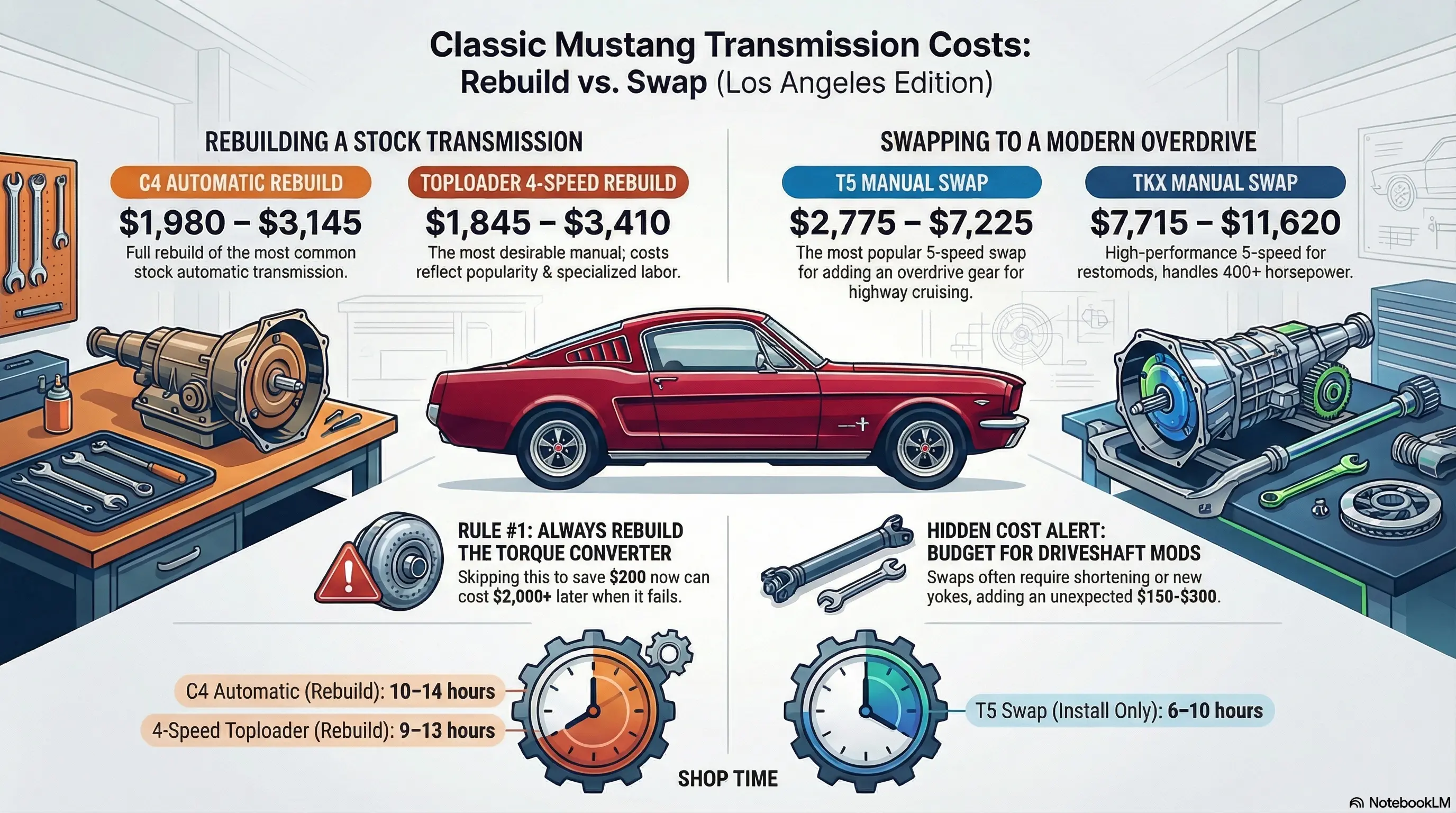

Cost Breakdown by Transmission Type

3-Speed Ford Manual Rebuild Cost

The Forgotten Transmission

The 3-speed was the base transmission on early Mustangs with inline-6 engines and budget 289 V8s. It's non-synchronized in 1st and 2nd on most units, which means you're double-clutching like it's 1952.

Most owners either keep it for originality or swap to a 4-speed Toploader or T5. Few rebuild the 3-speed unless they're committed to factory-correct restoration.

What's Involved:

• Full teardown and inspection
• Replace synchro rings (what few exist)
• Replace bearings (input, counter, output)
• New seals and gaskets
• Check cluster gear and main shaft for wear
• Torque converter N/A (manual)

Parts Costs:

Labor Costs (LA):

Total Rebuild Cost:

• Low: $1,635 (parts + Valley shop labor)
• Mid: $2,050 (mid-range parts + labor)
• High: $2,490 (premium parts + specialist labor)

Used/Reman Alternative:

• Used 3-Speed (eBay, swap meet): $300–$500 (rare, condition unknown)
• Reman 3-Speed: Not commonly available. Expect to rebuild what you have.

Dorian's Take: I've never rebuilt a 3-speed because I've never owned one. But I've talked to owners who have, and the consensus is: "Do it once, do it right, then immediately wish you'd swapped to a 4-speed."

The parts are cheap, but finding a shop that specializes in them is hard. Most will send it out, adding markup and time. If you're committed to originality, budget the high end. If you're not, scroll down to the Toploader or T5 sections.

Common Mistakes:

1. Buying a "rebuilt" unit on eBay - Ask me how many times "rebuilt" means "somebody took it apart once."
2. Skipping the clutch during rebuild - You're in there. Replace it. Pulling the transmission twice is expensive therapy.
3. Reusing old cross-shaft bushings - They're hardened and worn. Replace them.

4-Speed Toploader Rebuild Cost

The One Everyone Wants

The Ford Toploader 4-speed is the transmission everyone wishes their Mustang came with. It's strong, relatively easy to rebuild, and sounds fantastic with a Hurst shifter.

It's also expensive to restore properly. At $2,200–$3,800 for a full professional rebuild, it's not a budget option.

What's Involved:

• Complete disassembly and cleaning
• Replace all bearings (roller bearings on main gears)
• New synchro rings (especially 2nd gear)
• Inspect cluster gears and main shaft for wear
• Replace seals and gaskets
• Rebuild or replace shift forks and rails
• Optional: wide-ratio gear set upgrade ($500+)

Parts Costs:

Labor Costs (LA):

Total Rebuild Cost:

• Low: $1,845 (basic parts + Valley shop)
• Mid: $2,330 (mid-range parts + labor)
• High: $3,410 (premium parts + specialist labor)
• Outlier: $4,800+ (David Kee full rebuild with new composite case)

Used/Reman Alternative:

• Used Toploader (V8, 6-bolt case): $400–$800 (condition varies wildly)
• Fully Rebuilt (pro shop like DKTT): $1,000–$1,500
• New Composite Case (David Kee): $2,000+ (limited availability)

Dorian's Take: I restored a Toploader once. The parts weren't expensive—the kit was $220. The labor was where it hurt. My shop quoted $1,200 in labor, and I thought, "That's insane for eight hours of work."

Then I watched them do it. Cleaning the case (hot tank), pressing bearings, swaging synchro rings, torquing every nut to Ford's spec—it's not quick. They earned every dollar.

Here's what nobody tells you: the quality of the rebuild kit matters. Cheap eBay kits ($100) use Chinese bearings that fail early. USA-made kits (Cobra Automotive, DKTT) cost double but last. You'll pull the transmission once with good parts or twice with bad ones. Choose wisely.

Common Mistakes:

1. Reusing old synchro rings - They're brass. They wear. Replace them or enjoy grinding 2nd gear forever.
2. Skipping the cluster gear inspection - Worn teeth mean noise and eventual failure. If it's pitted, replace it.
3. Cheap rebuild kits - I bought one once. It lasted 6,000 miles. The second rebuild with quality parts is still going strong at 40,000 miles.
4. Not upgrading to wide-ratio gears - If you're rebuilding anyway and the car sees highway use, the $500 upgrade is worth it.
5. Forgetting the cross-shaft bushings - They're $40. Replace them. Your clutch pedal will thank you.

Supporting Upgrades:

• Hydraulic Clutch Kit: $350–$450 (makes clutch feel like a modern car)
• Hurst Shifter: $300–$500 (short-throw, better feel)
• Stifflink Crossmember: $150–$200 (reduces drivetrain slop)
• Lokar Shifter Boot: $40–$80 (cosmetic but nice)

Timeline: In-House Rebuild: 1–2 weeks | Sent Out (DKTT, etc.): 3–4 weeks + shipping | DIY: Plan a weekend (if experienced) or two weekends (if learning)

C4 Automatic Transmission Rebuild Cost

The Ubiquitous Three-Speed Auto

The C4 was the standard automatic in most '64–'71 Mustangs. It's simple, durable for stock engines, and slips like butter on a hot pan when the clutch packs wear out.

At $2,300–$6,000 for a full shop rebuild, it's not cheap. But compared to buying a used transmission of unknown condition, it's often the right choice.

What's Involved:

• Remove transmission (4–6 hours)
• Disassemble and inspect
• Replace clutch packs and bands
• Rebuild valve body (springs, checkballs)
• Replace seals (front pump, rear output, pan gasket)
• Rebuild or replace torque converter
• Reinstall and adjust TV cable/kickdown linkage

Parts Costs:

Labor Costs (LA):

Total Rebuild Cost:

• Low: $1,980 (basic parts + Valley shop)
• Mid: $2,625 (mid-range parts + labor)
• High: $3,145 (premium parts + specialist labor)

Used/Reman Alternative:

• Used C4 (Craigslist, eBay): $300–$500 (condition unknown)
• Remanufactured C4 (Speedway Motors, Summit): $1,800–$2,200 (bench-tested, 1-year warranty)

Owner-Reported Costs:

• Reddit owner (LA area): $450 (bench rebuild, DIY R&R)
• Shop rebuild (with removal): $1,400–$1,500 (mid-range LA shop)
• High-cost area shop: $2,500–$3,000 (Santa Monica, Pasadena)

Dorian's Take: I rebuilt a C4 once. Well, I had a shop rebuild it. I was quoted $1,200 for "bench rebuild only" and thought I'd save money by pulling it myself.

I didn't save money. I saved $400 in labor and spent $600 on a transmission jack rental, two cases of beer for friends who helped, and one trip to urgent care for a smashed finger. The math doesn't work unless you're doing multiple cars.

Here's what I learned: C4 rebuilds are deceptively complex. The valve body alone has 14 springs and 9 checkballs. One wrong assembly and you get shift flares or no 3rd gear. Pay a pro unless you've rebuilt multiple automatics.

Also: always rebuild the torque converter. I tried to save $200 by reusing mine. It failed 3,000 miles later. The second rebuild cost more than doing it right the first time.

Common Mistakes:

1. Reusing the old torque converter - It's worn. Rebuild it ($200–$300) or buy reman ($300–$400). Saving $200 now costs $2,000 later.
2. Skipping the transmission cooler - C4s run hot. Add an external cooler ($100). Your clutch packs will last longer.
3. Not adjusting TV cable properly - Improper adjustment causes harsh shifts or slipping. This is critical.
4. Cheap rebuild kits - I learned this the hard way. Quality kits (with Kevlar clutches) cost $200. Cheap kits fail early.
5. Ignoring valve body condition - If it's dirty or has worn springs, shift quality suffers. Clean it or upgrade it.

Supporting Upgrades:

• Shift Improvement Kit: $150–$250 (better bands, updated valve body springs)
• External Cooler: $50–$150 (required for any performance use)
• Kickdown/TV Cable Kit: $50–$100 (Lokar makes good ones)
• Deep Pan: $80–$120 (adds fluid capacity, helps cooling)

Timeline: In-House Rebuild: 1–2 weeks | Sent Out: 2–3 weeks | Reman Swap: 1–2 days (if you have the reman unit on hand)

FMX & C6 Automatic Rebuild Costs

The Heavy-Duty Automatics

The FMX (1968–'71) was Ford's medium-duty 3-speed automatic, used behind 351 V8s. The C6 was the heavy-duty big-block transmission. Both are tougher than the C4 but rarer and more expensive to rebuild.

FMX Rebuild Cost:

C6 Rebuild Cost:

Dorian's Take: I've never rebuilt an FMX or C6, but I've talked to owners who have. The consensus: "They're overbuilt for what most people need, but when you need them, nothing else works."

The C6 is nearly indestructible when built right. It's also heavy (100+ lbs vs. 130 lbs for a C4), has no overdrive, and requires specialized knowledge. Most shops charge a premium because they see fewer of them.

If you have one and it's failing, rebuild it. Finding a good used one is nearly impossible, and reman units are rare.

Modern Overdrive Swaps: T5, AOD, TKX

Tremec T5 5-Speed Manual Swap

The Most Popular Overdrive Manual Swap

The Tremec T5 adds a 5th gear (0.63–0.73 overdrive) for highway cruising. It's the go-to swap for classic Mustang owners who want modern drivability without cutting up the car.

What's Involved:

• Remove old transmission (3–4 hours)
• Install bellhousing adapter
• Install T5 with new mounts
• Route clutch cable or install hydraulic system
• Install shifter
• Modify or replace crossmember
• Shorten/modify driveshaft (sometimes)
• Install new speedometer cable/gear

Parts Costs:

Labor Costs (LA):

A T5 swap is moderately complex. Expect 8–12 hours of labor:

• Remove old transmission: 3–4 hours
• Install T5 and bellhousing: 3–4 hours
• Route clutch linkage: 1–2 hours
• Shifter and driveshaft work: 1–2 hours

Total Swap Cost:

• Low: $2,775 (used T5 + basic parts + DIY labor)
• Mid: $4,400 (new T5 + mid parts + Valley shop)
• High: $7,225 (Super-Duty T5 + premium parts + specialist labor)
• Outlier: $9,000+ (TKX swap with full tunnel mods and fabrication)

Owner-Reported Costs:

• Reddit owner (full shop T5 swap): $6,000 (parts + labor)
• DIY swap (used SN95 T5): Under $1,000 (donor trans + cable kit + weekend labor)

Dorian's Take: I did a T5 swap once. I bought a used 1994 Mustang T5 for $400, a cable clutch kit for $295, and borrowed a transmission jack. Total parts: $1,200. Total time: two weekends and one very patient friend.

Would I do it again? Yes. But only if I had a donor Mustang to pull the T5 from. Buying a new MDL Super-Duty T5 for $2,350 plus all the supporting parts pushes the cost into "maybe I should've just lived with 3 gears" territory.

Here's what nobody tells you: the driveshaft is the wildcard. Mine needed a new yoke ($50) and shortening ($150 at a driveline shop). Some swaps don't. There's no way to know until you're under the car with a tape measure.

Also: firewall clearance is tight. The T5's tailhousing can contact the firewall. Some owners trim it. Others move the crossmember back 1–2 inches. I got lucky and it cleared with no mods.

Common Mistakes:

1. Buying a cheap T5 without knowing its history - T5s fail. Get one from a known-good donor or buy new.
2. Not budgeting for driveshaft work - Add $200 just in case.
3. Forgetting speedometer calibration - The T5 gear is different. Your speedo will be wrong until you fix it.
4. Cheap bellhousing alignment - A misaligned bellhousing eats clutches. Pay for proper SFI bellhousing or have it checked.
5. Tunnel interference - Some T5s require trimming the transmission tunnel. Test fit before final assembly.

Timeline: DIY: Two weekends (if experienced) or one month (if learning) | Shop Install: 1–2 weeks (parts on hand)

AOD 4-Speed Automatic Swap

The Overdrive Automatic Solution

The AOD (Automatic OverDrive) was Ford's first 4-speed automatic (introduced 1980). It adds a 0.67 overdrive 4th gear, making highway driving tolerable in a classic Mustang.

What's Involved:

• Remove old transmission (C4 typically)
• Install AOD with new crossmember (C6 mount often used)
• Route throttle valve (TV) cable
• Plumb transmission cooler
• Modify or replace driveshaft
• Wire neutral safety switch

Parts Costs:

Labor Costs (LA):

An AOD swap takes 8–12 hours:

• Remove C4: 4 hours
• Install AOD and crossmember: 3–4 hours
• Route TV cable and wire neutral safety: 1–2 hours
• Driveshaft and initial setup: 1–2 hours

Total Swap Cost:

• Low: $3,255 (used AOD + basic parts + DIY labor)
• Mid: $4,540 (reman AOD + kit + Valley shop)
• High: $6,190 (premium reman + full kit + specialist labor)

Owner-Reported Costs:

• Vintage Mustang forum owner: $2,000–$2,500 (no core charge, used AOD)
• Shop swap (full service): $3,500–$5,000

Dorian's Take: I considered an AOD swap once. I got as far as buying a used AOD from a wrecking yard for $800 before realizing I'd need a conversion kit ($700), TV cable routing ($2 hours of my sanity), and possibly a driveshaft shop visit.

I didn't do it. I kept the C4 and learned to live with 3,000 RPM at 70 mph.

But for owners who do highway miles, the AOD makes sense. Just budget the high end and prepare for TV cable tuning—it's not plug-and-play like a manual swap.

Common Mistakes:

1. Buying an early AOD (1980–'85) - They had reliability issues. Get a late-model low-mile unit or reman.
2. Not tuning the TV cable properly - This is critical. Improper adjustment causes slipping or harsh shifts.
3. Skipping the transmission cooler - AODs run hot. Add a cooler or enjoy short clutch pack life.
4. Using the wrong flexplate - AOD flexplate is specific. Don't reuse the C4 flexplate.

Tremec TKX/TKO 5-Speed Manual Swap

The High-Performance Overdrive Manual

The Tremec TKX (and its predecessor, the TKO) are modern 5-speed manuals rated for 500+ lb-ft of torque. They're the choice for restomod builds with modern V8s or high-power classic engines.

Parts Costs:

Labor Costs (LA):

TKX swaps are complex. Expect 12–20 hours of labor:

• Fabricate or modify crossmember: 4–6 hours
• Tunnel modifications (welding): 2–4 hours
• Install transmission and bellhousing: 3–4 hours
• Clutch linkage and shifter: 2–3 hours
• Driveshaft work: 1–2 hours

Total Swap Cost:

• Mid: $7,715 (TKX + mid parts + Valley shop)
• High: $11,620 (premium build + specialist labor)

Dorian's Take: I've never done a TKX swap. At $8,000–$12,000, it's beyond my "because I want to" budget and firmly into "because I need to" territory.

But for owners building 400+ hp Mustangs, it's the right choice. The T5 won't hold that power. The TKX will.

Just know you're committing to tunnel mods, crossmember fab, and multiple weekends (or weeks) of work. This isn't a bolt-in swap.

Sample Rebuild Scenarios (What You'll Actually Pay)

Scenario 1: "Budget Driver Rebuild" - C4 Automatic

The Car: 1967 Mustang coupe, 289 V8, slipping C4 transmission

Owner's Goal: Get it back on the road reliably, minimal cost

Work Needed:

• Remove and rebuild C4 in-house
• Reuse torque converter (risky but owner accepted it)
• Basic rebuild kit, no upgrades
• Owner did R&R himself

Costs:

• Parts (rebuild kit): $180
• Torque converter reseal: $100
• Misc fluids/gaskets: $40
• Shop bench rebuild labor (8 hrs @ $110/hr): $880
• TOTAL: $1,200

Timeline: 10 days (drop off trans, wait, pick up)

Dorian's Note: This is the absolute floor. The owner saved $500 by doing R&R himself and another $200 by reusing the converter. The converter failed 2 years later. He paid $1,200 again. Cheap twice costs more than right once.

Scenario 2: "Correct Restoration" - Toploader 4-Speed

The Car: 1965 Mustang fastback, 289 K-code, numbers-matching Toploader

Owner's Goal: Factory-correct rebuild, OEM-quality parts, keep it original

Work Needed:

• Full shop rebuild with professional removal/install
• USA-made rebuild kit (Cobra Automotive)
• New clutch kit (King Cobra)
• Wide-ratio gear set upgrade (DKTT)
• Hurst shifter upgrade

Costs:

• Toploader rebuild kit (USA bearings): $220
• Wide-ratio gear set: $500
• King Cobra clutch kit: $280
• Cross-shaft bushings: $50
• Hurst shifter: $350
• Shop labor (R&R + rebuild, 12 hrs @ $125/hr): $1,500
• TOTAL: $2,900

Timeline: 3 weeks (sent to DKTT for gear set installation)

Dorian's Note: This is "do it once, do it right." The wide-ratio gears transformed highway driving. The owner said it was worth every penny. I believe him.

Scenario 3: "Modern Overdrive Swap" - T5 Manual Swap (from C4)

The Car: 1969 Mustang Mach 1, 351W, C4 automatic (working but no overdrive)

Owner's Goal: Highway-friendly overdrive, keep it manual, moderate budget

Work Needed:

• Source used 1994 Mustang T5 from wrecking yard
• Modern Driveline cable clutch kit
• Aluminum bellhousing (used, eBay)
• Lokar shifter
• Driveshaft shortened at local shop
• DIY install with friend's help (two weekends)

Costs:

• Used T5 transmission: $500
• Aluminum bellhousing (used): $400
• Cable clutch kit (MDL): $295
• McLeod clutch kit: $320
• Lokar shifter: $280
• Driveshaft shortening: $180
• Crossmember (used): $80
• Misc hardware: $150
• Beer/pizza for helper: $100
• TOTAL: $2,305

Timeline: Two weekends (plus 1 week waiting for driveshaft shop)

Dorian's Note: This is my favorite scenario. The owner saved $1,500 in labor by DIY and got a huge drivability upgrade. The used T5 had 60,000 miles and is still running strong 5 years later.

The catch: You need space, tools, and a friend who knows transmissions. Not everyone has that.

Scenario 4: "Restomod Build" - Tremec TKX Swap

The Car: 1970 Mustang fastback, stroked 347 making 425 hp, pro touring build

Owner's Goal: Modern 5-speed that can handle power, no budget cap

Work Needed:

• New Tremec TKX transmission (Modern Driveline)
• QuickTime SFI bellhousing
• McLeod dual-disc clutch
• Hydraulic clutch setup
• Custom crossmember fabrication
• Tunnel modifications (welding)
• Driveshaft custom-built
• Professional shop install

Costs:

• Tremec TKX transmission: $3,200
• QuickTime SFI bellhousing: $1,150
• McLeod dual-disc clutch: $550
• Hydraulic clutch kit: $400
• Custom crossmember fab: $800
• Tunnel mods (welding): $600
• Custom driveshaft: $450
• Lokar shifter: $380
• Shop labor (18 hrs @ $165/hr): $2,970
• TOTAL: $10,500

Timeline: 5 weeks (crossmember fab, tunnel work, driveshaft build)

Dorian's Note: This is "because I can" money. But the result is a modern, bulletproof 5-speed that shifts like a new car and handles 500+ lb-ft without flinching.

For this owner, it was worth it. For most of us, the T5 swap makes more sense.

What Shops Need Before They Can Quote You

Los Angeles transmission shops need specific information before they can give you an accurate quote. Here's what to have ready:

For Rebuilds:

1. Transmission type - C4? Toploader? Be specific.
2. Current symptoms - Slipping? Grinding? Leaking? Where?
3. Mileage (if known)
4. Previous rebuild history - Has it been rebuilt before?
5. Torque converter condition - Include in rebuild or reuse?
6. Performance goals - Stock? Mild upgrades? Full build?

For Swaps:

1. Current transmission type - What you're swapping from
2. Desired transmission - What you want
3. Engine specs - Horsepower, torque, modifications
4. Budget range - Realistic numbers help shops recommend options
5. DIY capability - Can you do removal/install yourself?
6. Timeline flexibility - Need it in 2 weeks or can you wait 2 months?

Photos That Help:

• Transmission identification tag
• Leak locations
• Driveshaft and crossmember (for swaps)
• Engine bay (for clearance assessment)

Don't walk into a shop and say, "How much to fix my transmission?" That's like asking "How much to fix my car?" Be specific, be honest about budget, and you'll get better answers.

Common Hidden Costs (And How to Avoid Them)

1. Torque Converter Rebuilds

The Trap: "We'll reuse your converter to save money."

The Reality: Old converters fail. Rebuilding one costs $200–$300. Skipping it saves $200 now and costs $2,000 when it fails 3,000 miles later (full R&R again).

Dorian's Rule: Always rebuild or replace the converter. Always.

2. Driveshaft Modifications

The Trap: "Transmission swap includes everything you need."

The Reality: T5 and AOD swaps often require driveshaft shortening ($150–$300) or new yokes ($50). Shops don't include this in initial quotes.

Dorian's Rule: Budget $300 for driveshaft work on any swap.

3. Crossmember Fabrication

The Trap: "The kit says it's bolt-in."

The Reality: "Bolt-in" kits often require trimming, drilling, or welding. Custom crossmember fab costs $300–$800.

Dorian's Rule: On swaps, add 20% to the quote for "while we're in there" moments.

4. Clutch Linkage Conversions

The Trap: "The manual swap is just the transmission."

The Reality: Going from automatic to manual requires pedals, master cylinder, clutch fork, and linkage. This adds $400–$700 in parts plus labor.

Dorian's Rule: Budget for full clutch system when swapping auto to manual.

5. Speedometer Recalibration

The Trap: "We'll hook up the speedometer."

The Reality: Different transmissions use different gears. Your speedometer will read wrong until you change the gear ($40–$80) or install electronic correction ($150+).

Dorian's Rule: Test the speedometer after any transmission work. GPS-verify before assuming it's right.

6. Core Charges

The Trap: "Reman transmission is $1,800."

The Reality: That's with a core exchange. No core? Add $300–$500 core charge.

Dorian's Rule: Ask if the price includes core exchange. If not, keep your old transmission.

Factors That Affect Final Cost

1. Shop Specialization

• General Transmission Shop: $110–$125/hr (may send classics out)
• Classic Car Specialist: $125–$150/hr (knows Mustangs, does it in-house)
• High-End Restorer: $150–$165/hr (concours-level work)

2. Parts Quality

• Budget Rebuild Kits: $100–$150 (Chinese bearings, short lifespan)
• Quality Rebuild Kits: $180–$250 (USA bearings, Kevlar clutches)
• Premium Kits: $300+ (DKTT, Cobra Automotive, OEM-spec)

3. Condition Discovery

• Best Case: Rebuild kit + labor, no surprises
• Typical Case: Rebuild kit + converter + one "while we're in there" part
• Worst Case: Cracked case, worn cluster gears, full replacement needed

I learned this when my "simple rebuild" needed a new cluster gear ($400) because the previous owner ran it low on fluid for years. The metal looked like somebody attacked it with a file.

4. DIY vs. Shop Labor

• Full DIY: Save $1,200–$2,500 in labor (if you have tools/skills)
• DIY R&R, Shop Rebuild: Save $400–$800
• Full Shop: Pay for convenience and warranty

5. Location Within LA

• Valley/Inland Empire: $110–$125/hr
• Central LA: $125–$140/hr
• Westside/Beach Cities: $140–$165/hr

The same C4 rebuild costs $1,400 in Van Nuys and $2,200 in Santa Monica. Same work, different zip codes.

Timeline Expectations (Realistic)

Dorian's Law of Timelines: Whatever they quote, add 50%. If they say 2 weeks, plan for 3. You'll either be pleasantly surprised or correctly pessimistic.

Mistakes I Made (So You Don't Have To)

1. Buying a "Rebuilt" Transmission on eBay

The Mistake: Saved $400 by buying a "professionally rebuilt" C4 on eBay instead of having mine rebuilt.

The Reality: It lasted 8,000 miles before slipping. "Rebuilt" meant "somebody took it apart once and put it back together with hope."

The Lesson: Pay a local shop you can yell at if it fails. Warranties matter.

2. Reusing the Torque Converter "To Save Money"

The Mistake: Shop quoted $1,200 for C4 rebuild. I said "skip the converter rebuild to save $200."

The Reality: Converter failed at 3,000 miles. Second rebuild (with converter this time) cost $1,400.

The Lesson: Penny-wise, pound-foolish. Rebuild the converter.

3. Not Test-Driving After a Rebuild

The Mistake: Picked up the car, paid the bill, drove home. Didn't test properly.

The Reality: Discovered harsh 1–2 shift 100 miles later. Shop said "should've mentioned it at pickup." Fixing it required another visit and negotiation.

The Lesson: Test drive before paying. Check all gears, shifts, and leaks. Don't be polite—be thorough.

4. Buying Cheap Rebuild Kits

The Mistake: Saved $100 by buying the $120 eBay rebuild kit instead of the $220 Cobra Automotive kit.

The Reality: Bearings failed at 6,000 miles. Second rebuild with quality parts is still running at 40,000 miles.

The Lesson: Quality parts cost more once. Cheap parts cost more twice.

5. Not Asking About Core Charges

The Mistake: Bought a "reman AOD for $1,800" online. Didn't ask about core charge.

The Reality: $500 core charge showed up at checkout because I didn't have a core to send back.

The Lesson: Ask if price includes core exchange. It usually doesn't.

Frequently Asked Questions

How much does it cost to rebuild a Mustang C4 transmission in Los Angeles?

A C4 automatic transmission rebuild in Los Angeles typically costs $2,000–$3,500 including parts and labor. This includes: Rebuild kit (clutches, bands, seals): $150–$200; Torque converter rebuild: $200–$300; Shop labor (10–14 hours @ $110–$165/hr): $1,100–$2,310. Budget the high end if using a classic car specialist. Valley shops may come in at the low end.

Is it cheaper to rebuild or swap to a T5?

Rebuild C4: $2,000–$3,500 | T5 Swap: $2,800–$7,200. If your C4 is already out and functional, rebuilding is cheaper. If it's failed and you want overdrive, swapping to a used T5 costs about the same as a quality C4 rebuild. The T5 gives you 5th gear (overdrive). The C4 doesn't. That's the decision point.

How long does a Toploader rebuild take?

In-house shop: 1–2 weeks (realistic: 2–3 weeks) | Sent to specialist: 3–4 weeks (realistic: 4–6 weeks) | DIY: Two weekends (if experienced). Toploaders require specialized tools and knowledge. Most shops send them out, adding time.

Can I rebuild a transmission myself?

Manual (Toploader, 3-speed): Possible if you have mechanical skills, specialized Ford tools, and a clean workspace. Expect 10–15 hours. Automatic (C4, AOD): Not recommended unless you've rebuilt automatics before. Valve bodies have 14+ springs and checkballs. One mistake = no 3rd gear or harsh shifts. Dorian's Take: I've rebuilt a Toploader (with help). I would never attempt a C4. Pay a pro for automatics.

What's the most reliable classic Mustang transmission?

Manual: Toploader 4-speed. Strong, rebuildable, parts available. It's the gold standard. Automatic: C4 for stock engines. It's simple and durable when maintained. For high-power builds, the C6 is stronger but heavier. Modern Swap: Tremec T5 for manual overdrive (up to ~300 hp). TKX for high-power (500+ hp).

Should I rebuild the torque converter?

Yes. Always. Reusing an old converter saves $200 now and costs $2,000 later when it fails and you pay for R&R again. Rebuild it ($200–$300) or buy reman ($300–$400). Don't skip this.

How much does a Tremec T5 swap cost?

Parts: $1,700–$5,500 (depending on new vs. used trans, parts quality) | Labor: $1,100–$1,650 (8–12 hours @ $110–$165/hr) | Total: $2,800–$7,200. DIY with a used T5 can be under $2,000. Full shop install with new Super-Duty T5 approaches $7,000.

What's better for highway driving: AOD or T5?

T5 if you want manual control and don't mind shifting. AOD if you want automatic convenience. Both add overdrive (5th gear ~0.67–0.73). The T5 is cheaper to swap if you can DIY. The AOD is more complex (TV cable tuning, electronic controls on later models). I'd choose T5 for engagement, AOD for cruising.

How much does it cost to rebuild an FMX transmission?

Parts: $200–$450 | Labor: $1,320–$2,310 (12–14 hours) | Total: $1,770–$3,260. FMX transmissions are rarer than C4s. Expect to pay more for parts and labor because fewer shops specialize in them.

Can I swap a C6 transmission into a small-block Mustang?

Yes, but it's overkill for most builds. The C6 is heavy (100+ lbs), has no overdrive, and requires custom crossmember fab. It's stronger than a C4, but unless you're building a big-block or high-power drag car, the C4 (rebuilt) or AOD (overdrive) makes more sense.

What tools do I need to remove a transmission?

Minimum: Transmission jack (rent from AutoZone: $40/day), Jack stands (rated for 3+ tons), Socket set (metric and SAE), Drain pan, Wrench set, Pry bar, Wheel chocks. Nice to Have: Impact wrench (for bellhousing bolts), Creeper, Work light, Magnetic parts tray. Dorian's Note: The transmission jack is non-negotiable. I tried once with a floor jack and a friend. It was stupid and dangerous. Rent the right tool.
